Eagle Strike Decals # 32038 Augsburg
Flyers Part IV and #32039 Augsburg Flyers Part V
will be available online from Squadron.com
S
u m m a r y
|
Catalogue Number: |
32038 Augsburg Flyers Part IV
32039 Augsburg Flyers Part V |
Scale: |
1/32 |
Contents and Media: |
One 205mm decal sheet; double-sided colour instructions and
placement guide in each set. |
Price: |
RRP USD$9.50 from
Eagle Strike Website |
Review Type: |
First Look |
Advantages: |
Nice selection of markings and schemes;
selected stencil data included; three subjects per sheet; perfect registration and colour saturation;
minimal carrier film. |
Disadvantages: |
Chevron marking too large for
Hackl's aircraft |
Recommendation: |
Recommended |
Reviewed
by Brett Green
Eagle Strike has made their contribution to Gustav-mania with five new decal
releases for the Hasegawa 1/32 scale Messerschmitt Bf 109G-6.
Two of these sheets featured subjects that I wanted to build - Anton Hackl's
"Double Chevron" of III./JG 11 and an Italian Bf 109G-6 /R6/Trop.
Each sheet includes three colourful subjects on a single, full-sized decal
sheet. Registration is perfect and colours look very good. The decals are quite
thin too. Instructions are supplied on a double-sided sheet with small colour
illustrations and notes on each aircraft plus a stencil marking guide.

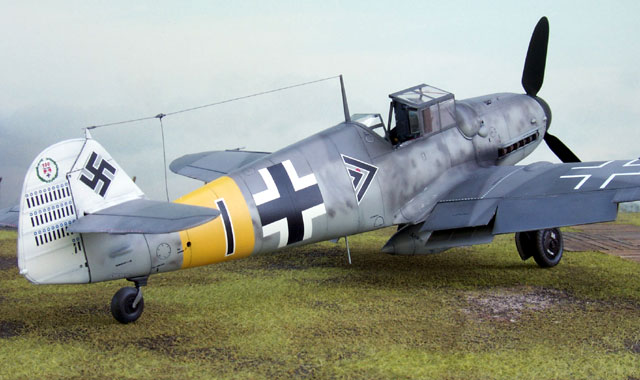

I have already applied the markings for Hackl's aircraft to my Hasegawa 1/32
scale Bf 109G-6. The decals performed well, conforming to recessed panel lines
and responding perfectly to Micro Set and Micro Sol.
Selected stencil data is included on each sheet. The remainder of the stencil
markings can be sourced from the Hasegawa kit or the spares box.
Specific subjects on each sheet are as follows:

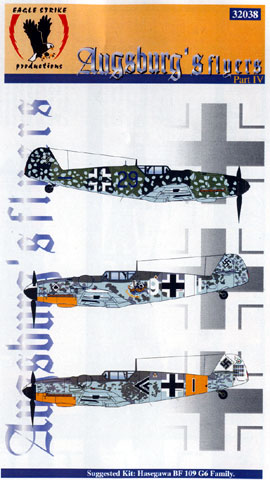

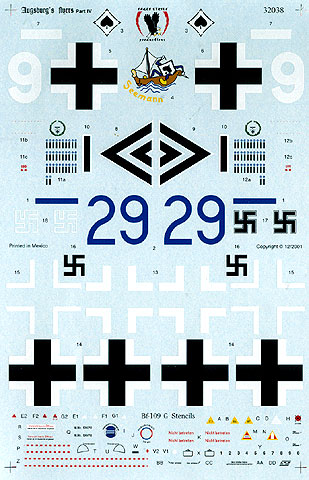

32038 Augsburg Flyers Part IV
Three Messerschmitt Bf 109G-6 aircraft.
-
Blue 29 - a very unusual aircraft
with possible upper surface finish of 82/83 Greens and distinct spotty
mottle of 76 Light Blue. The large Blue 29 and II Gruppe bar add even
more interest.
-
White 9 - Standard 74/75/76 Grey
finish with Pik As (Ace of Spades) JG 53 badge on the cowling
and a large cartoon Ace of Spades in a sailing boat located on the
mid-fuselage. Individual cartoons of the Pik As emblem were a
feature of 7 Staffel aircraft. The aircraft also has a white III
Gruppe bar, fuselage band and wing tips with yellow undercowl and
white quartered spinner.
-
Double Chevron - Standard 74/75/76
Grey finish. Anton Hackl flew this aircraft and a similarly marked Fw
190A while he was Gruppenkommandeur of III /JG 11 in early 1944. The
aircraft has a white-outlined black double chevron and III Gruppe bar,
broad yellow JG 11 RV Band and a white tail. The tail carries a green
laurel with the iron cross and "100", and additional victory bars are
painted below. Some sources show this aircraft with yellow undercowl,
but I think the question is still open. The fuselage has a heavy,
irregular mottle in 74 and 75 Greys.
The decal instruction artwork shows the
early solid metal pilot's armour in the cockpit, but my reference
photo clearly shows that Galland Panzer armour with the armoured glass
was installed on this aircraft.
The decals for the victory markings are
very impressive. Separate decals are supplied for the red "ribbon" and
the tiny red dots in the middle of the British roundels that crown
each victory bar. The chevron decal is too
large by about one third. This will be quite noticeable on the model.
Options are
-
live with it
-
mask and paint your own chevron (the real
one on Hackl's aircraft looks quite crude anyway) or
-
use the chevron from the 1/48 scale
Aeromaster sheet no. 48-460 "Augsburg Eagles Part X" (that's what I
did!)
|
